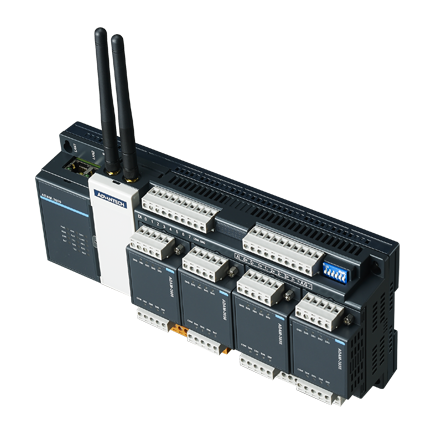

Bộ Gateway ADAM-3600

Thương hiệu: ADVANTECH | Mã sản phẩm: ADAM-3600 | Tình trạng: Còn trong kho

Liên hệ

Mô tả sản phẩm:

Bảo hành: 24 tháng

Thông số kỹ thuật:

ANALOG INPUT CHANNELS	8
ANALOG INPUT RANGE	±10 V, ±2.5 V, 0~20 mA, 4~20 mA
ANALOG INPUT RESOLUTION(BITS)	16-bit
DIGITAL INPUT CHANNELS	8
DIGITAL FILTER	3 ms
DIGITAL INPUT VOLTAGE	Wet Contact Logic Level 0: 0~+5 V Logic Level 1: +11~30V
ISOLATION PROTECTION	2,000 VDC
DIGITAL OUTPUT CHANNELS	4
DIGITAL OUTPUT VOLTAGE RATING	8~30 VDC
OPERATING TEMPERATURE	-40~70 °C (-40~158 °F)
RELATIVE HUMIDITY	5~95% RH (non-condensing)
STORAGE TEMPERATURE	-40~85 °C (-40~185 °F)
ETHERNET SPEED	10/100 Mbps
INTERFACE	Full size mini PCI express 2.0
SIM CARD SLOT	Nano SIM card
PROTOCOL	IEC61131-3&C
HARDWARE CERTIFICATION	CE, FCC class A
CPU	Cortex-A8 AM3352
EXPANSION	1 x Full-size mPCIe Slot, 1 x Half-size mPCIe Slot
I/O	1 x RS232/485, 2 x RS485, 1 x USB 2.0, 2 x LAN,1 x VGA
LED INDICATORS	PWR, RUN / ERROR,TX1, RX1, TX2, RX2, I/O
MEMORY	256MB, Battery Backup RAM 32K
OS SUPPORT	Linux
POWER CONSUMPTION	5 W @ 24 VDC
POWER INPUT	10~30 VDC
STORAGE	1GB MicroSD card, SD card slot (optional)
DISPLAYS	1 x VGA
POWER CONNECTOR	1 x 12-Pin Terminal Block
SERIAL PORTS	1 x RS-232/485 (DB9), 2 x RS-485 (Terminal Block)
USB PORTS	1 x USB 2.0
DATA SIGNALS	RS-232: TxD, RxD, GND RS-485: Data+, Data-
WIRELESS COMMUNICATION	WIFI; LTE
IOT GATEWAY	Advantech
